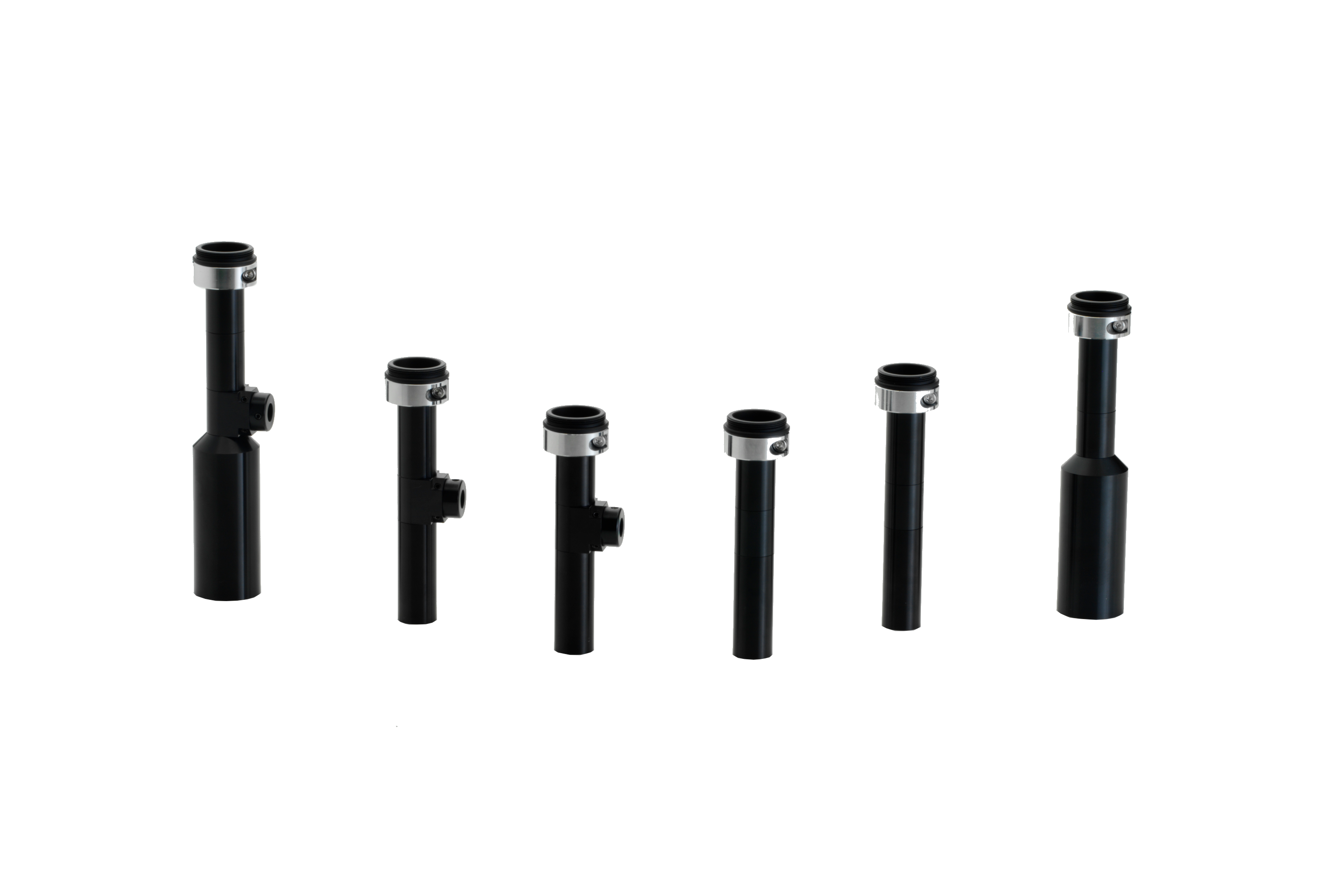

FVL 65

Compact telecentric lenses with 65mm working distances for φ 17 camera mount.

More information available upon request.

FVL 65

FVL 65

High resolution telecentric bonder lens, with low distortion that is suitable for image processing systems.

The lens use a new C - Mount adapter that allows total adjustment of camera orientation with a variety of illumination port styles and magnifications.

Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
Straight Type
0.5x
0.046
5.4
17.6 x 13.2
0.02%
65
8.0
Straight Type
0.8x
0.04
10.1
11 x 8.3
0.20%
65
8.3
Straight Type
1x
0.04
11.5
8.8 x 6.6
0.10%
65
8.3
Straight Type
2x
0.06
16.3
4.4 x 3.3
0.10%
65
5.6
Straight Type
3x
0.07
22.2
2.9 x 2.2
0.10%
65
4.8
Straight Type
4x
0.08
26.2
2.2 x 1.7
0.10%
65
4.2
Straight Type
5x
0.08
30.2
1.8 x 1.3
0.10%
65
4.2
Coaxial Illumination Port Version
0.5x
0.046
5.4
17.6 x 13.2
0.02%
65
8.0
Coaxial Illumination Port Version
0.8x
0.04
10.1
11 x 8.3
0.20%
65
8.3
Coaxial Illumination Port Version
1x
0.04
11.5
8.8 x 6.6
0.10%
65
8.3
Coaxial Illumination Port Version
2x
0.06
16.3
4.4 x 3.3
0.10%
65
5.6
Coaxial Illumination Port Version
3x
0.07
22.2
2.9 x 2.2
0.10%
65
4.8
Coaxial Illumination Port Version
4x
0.08
26.2
2.2 x 1.7
0.10%
65
4.2
Coaxial Illumination Port Version
5x
0.08
30.2
1.8 x 1.3
0.10%
65
4.2
