FVL HR

Compact high-resolution telecentric lenses for 2 MP cameras.

More information available upon request.

FVL HR

FVL HR

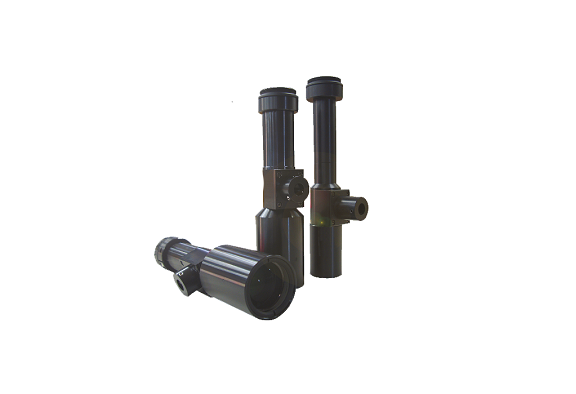

Telecentric lens for 2 megapixel cameras. Designed for high - resolution alignment and measurement. (Some models are compatible with 5 megapixel cameras). The lens works at WD 65mm and over 100mm.

Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
Straight Type
0.5x
0.0365
6.8
17.6 x 13.2
0.03%
65
9.2
Straight Type
1x
0.049
10.1
8.8 x 6.6
0.10%
65
6.8
Straight Type
2x
0.075
13.3
4.4 x 3.3
0.01%
65
4.5
Straight Type
4x
0.125
15.8
2.2 x 1.7
0.02%
65
2.7
Straight Type
0.5x
0.028
8.8
17.6 x 13.2
0.05%
106
12.0
Straight Type
2x
0.085
11.8
4.4 x 3.3
0.01%
110
3.9
Straight Type
4x
0.096
21
2.2 x 1.7
0.03%
110
3.5
Straight Type
4x
0.096
21.2
2.2 x 1.7
0.02%
140
3.5
Coaxial Illumination Port Version
0.5x
0.0365
6.8
17.6 x 13.2
0.03%
65
9.2
Coaxial Illumination Port Version
1x
0.049
10.1
8.8 x 6.6
0.10%
65
6.8
Coaxial Illumination Port Version
2x
0.075
13.3
4.4 x 3.3
0.01%
65
4.5
Coaxial Illumination Port Version
4x
0.125
15.8
2.2 x 1.7
0.02%
65
2.7
Coaxial Illumination Port Version
0.5x
0.028
8.8
17.6 x 13.2
0.05%
106
12.0
Coaxial Illumination Port Version
2x
0.085
11.8
4.4 x 3.3
0.01%
110
3.9
Coaxial Illumination Port Version
4x
0.096
21
2.2 x 1.7
0.03%
110
3.5
Coaxial Illumination Port Version
4x
0.096
21.2
2.2 x 1.7
0.02%
140
3.5
