GIGE

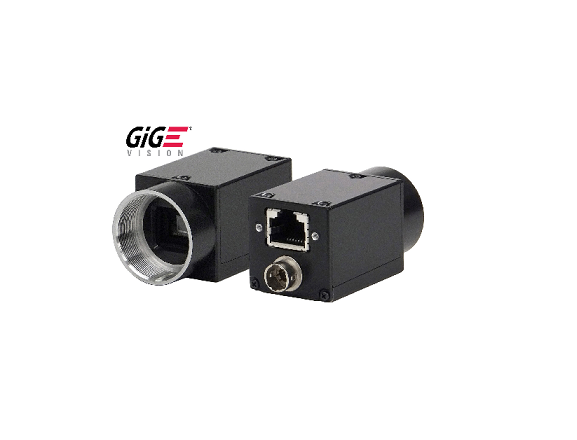

This BG series adopts all pixel data readout interline CCD or CMOS. Gigabit Ethernet interface standard is adopted for high transfer video rate.

Full specs are available for download on the datasheets.

GIGE

GIGE

This BG series has a selectable video output area mode and is able to reduce the horizontal output area.

More features include:

  • Built in color processing and Global electronic shutter
  • Square grid arrangement of pixels facilitates computation in image processing
  • The Random Trigger Shutter function provides images in any timing by input of an external trigger signal.
Model Frame Rate (fps) Resolution Pixel Size (um) Sensor format Scan area (mm)
BG505LMG
NEW
22(Mono8)
2,448(H) x 2,048(V)
3.45(H) x 3.45(V)
2/3 type GS-CMOS(IMX264)
8.45(H) x 7.06(V) (2/3 type)
BG302LMG
NEW
35(Mono8)
2,048(H) x 1,536(V)
3.45(H) x 3.45(V)
1/1.8 type GS-CMOS(IMX265)
7.07(H) x 5.30(V) (1/1.8 type)
BG205M-CS
50
2048(H) x 1088(V) 2M
5.5 x 5.5
2/3 GS-CMOS
11.26(H) x 5.98(V)
BG202
20
1628(H) x 1236(V) 2M
4.40 x 4.40
1/1.8 CCD
7.16(H) x 5.44(V)
BG031
125
659(H) x 494(V) 0.3M
9.9 x 9.9
1/2 CCD
6.52(H) x4.89(V)
BG030
125
659(H) x494(V) 0.3M
7.4 x 7.4
1/3 CCD
4.88(H) x 3.66(V)
BG080
40
1034(H) x 779(V) 0.8M
4.65 x 4.65
1/3 CCD
4.81(H) x 3.62(V)
BG130
30
1296(H) x 966(V) 1.3M
3.75 x 3.75
1/3 CCD
4.86(H) x 3.62(V)
Model Frame Rate (fps) Resolution Pixel Size (um) Sensor format Scan area (mm)
BG202C[F]
NEW
20
1628 x 1236
4.40 x 4.40
1/1.8 Type
7.16 x 5.44
BG130C[F]
NEW
30
1296 x 966
3.75 x 3.75
1/3 Type
4.86 x 3.62
BG030C[F]
NEW
125
659 x 494
7.4 x 7.4
1/3 Type
4.88 x 3.66
BG205(MC-CS/MCF-CS)
50
2048(H) x 1088(V) 2M
5.5 x 5.5
2/3 GS-CMOS
11.26(H) x 5.98(V)
