BG130

Pixel Resolution:
1296(H) x 966(V) 1.3M
Pixel Size (um):
3.75 x 3.75
Frame Rate (fps):
30
Scan area (mm):
4.86(H) x 3.62(V)
Aspect Ratio:
4:3
Standard sensitivity:
1300lx (F5.6, 1/30s)
Min. sensitivity:
3lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to +25%
Gamma:
y=1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
PoE/DC12V
Power consumption:
PoE:3.2W Max / DC12V:2.8W Max
Video format:
GVSP_PIX_MONO8:MONO 8bit/GVSP_PIX_MONO10:MONO 10bit
Weight:
approx.53g
Electronic Shutter Method:
N/A
Lens Mount:
C mount
Sensor type:
CCD
Sensor Vendor:
Sony Corporation
Sensor Name:
ICX445AL
Sensor format:
1/3 CCD

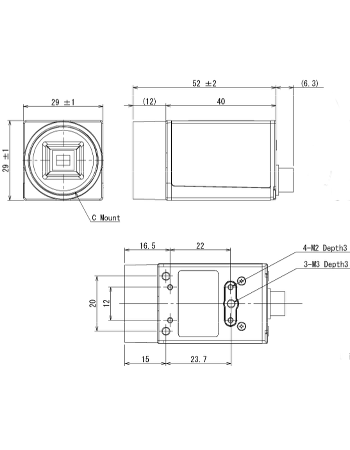

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 40(D)
$0.00
SKU: BG130
List price: $0.00
Price: $0.00
