Infrared Microscope

IR-2200 Microscope System enables the user to inspect sub-surface images including MEMS device, 3D stacks, incoming wafers, photovoltaic and wafer level CSP’s with an astonishing level of precision.

More information available upon request.

Infrared Microscope

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

Infrared Microscope

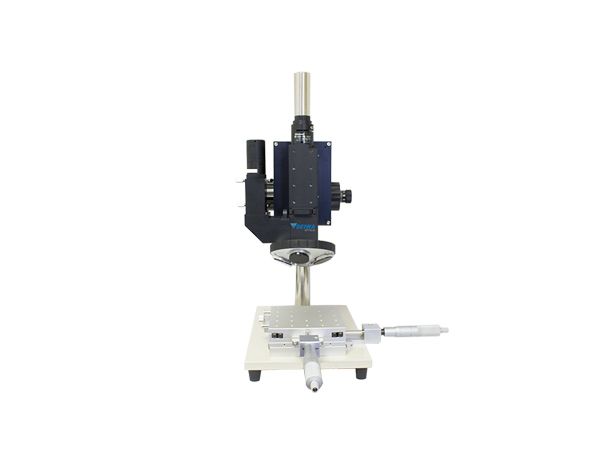

The IR-2200 system integrates the infrared table top microscope system with software and 4.1 Megapixel USB-3.0 NIR Camera.

Capable of high precision measurements, image capture, verification and inspection of materials transparent to the near infrared (NIR) / Shortwave Infrared (SWIR) wavelengths.

PDF icon IR-2200 catalog
Model
IR-2200
Model Frame Rate (fps) Resolution Pixel Size (um) Sensor format
130MI-NIR-WOM
30
1280(H) × 1024(V)
5.2(H) × 5.2(V)
6.66 x 5.32 mm
036MI2-NIR-WOM
30
640(H) × 480(V)
6.0(H) × 6.0(V)
4.51 × 2.88 mm
