Machine Vision Lens

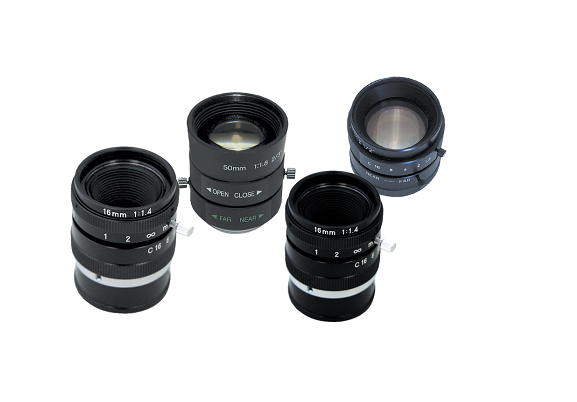

Fixed focal length lens with C-mount, manual iris and manual focus.

More information available upon request.

Machine Vision Lens

Machine Vision Lens

These lens are perfect for use for Machine vision, failure analysis, and image processing.

Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-3.5V
F1.6-C
0.1
1/2”
84.9×68.9°
43
STV-6V
F1.4-C
0.2
1/2”
56.1×43.6°
30.5
STV-12V
F1.4-C
0.3
1/2”
29.9×22.6°
30.5
STV-35
F1.2-C
1
1/2”
10.4×7.8°
40.5
Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-7.5V
F1.4-C
0.2
2/3”
60.8×47.5°
34
STV-16V
F1.4-C
0.4
2/3”
30.7×23.3°
27
STV-50
F1.8-C
0.7
2/3”
11.0×8.3°
30.5
