SVL

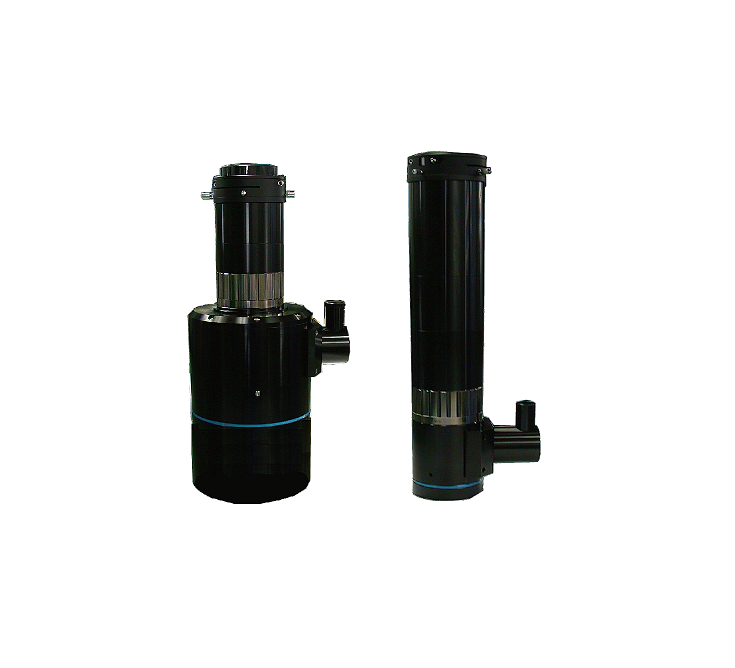

High-resolution telecentric lenses for Large Sensors and Line Scan Cameras.

More information available upon request.

SVL

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

SVL

These lens are ideal for capturing the images of glass substrate, such as the patterns on a mirror. Choose from a variety of camera mount options.

Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
Straight Type
0.5x
0.045
5.5
128
0.20%
160
7.9
Straight Type
0.7x
0.062
5.6
91.4
0.10%
150
5.9
Straight Type
1x
0.087
5.7
64
0.10%
135
4.5
Straight Type
2x
0.124
8
32
0.02%
110
2.9
Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
Coaxial Illumination Port Version
0.5x
0.045
5.5
128
0.20%
160
7.9
Coaxial Illumination Port Version
0.7x
0.062
5.6
91.4
0.10%
150
5.9
Coaxial Illumination Port Version
1x
0.087
5.7
64
0.10%
135
4.5
Coaxial Illumination Port Version
2x
0.124
8
32
0.02%
110
2.9
