DUV Plan APO Series

Objective lens with high transmissions that are visible up to 532nm. Applications include Nd:YAG laser cutting and repair of semiconductor and LCD circuits.

Full specs are available for download on the datasheets.

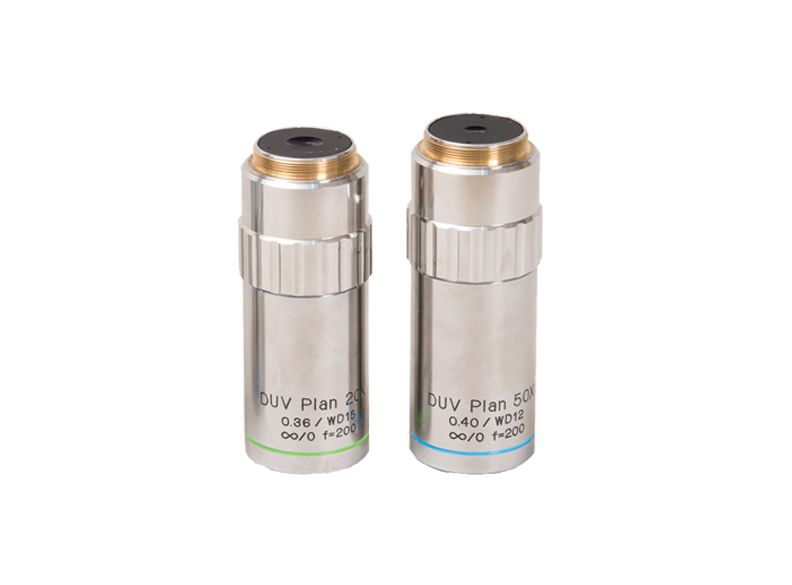

DUV Plan APO

DUV Plan APO

The DUV is an extension of the UV Plan APO objectives lens series. The lens are able to extend high transmissions down to 266nm. They are optimized for Optimized for brightfield illumination and f=200mm tube lenses.

More features include:

  • Color corrected for simultaneous focus at 266nm and visible wavelengths
  • YAG laser cutting and repair of semiconductor and LCD circuits.
  • Plano Apochromat design provides excellent contrast and resolution performance
Model Magnification Working Distance N.A. RP (μm) DOF (μm) Eyepiece FOV (mm) 2/3” Format FOV (mm)
20x
15.5
0.36
0.9
2.1
1.1
0.44 x 0.33
50x
12.0
0.40
0.8
1.7
0.44
0.18 x 0.13
