FVL 120

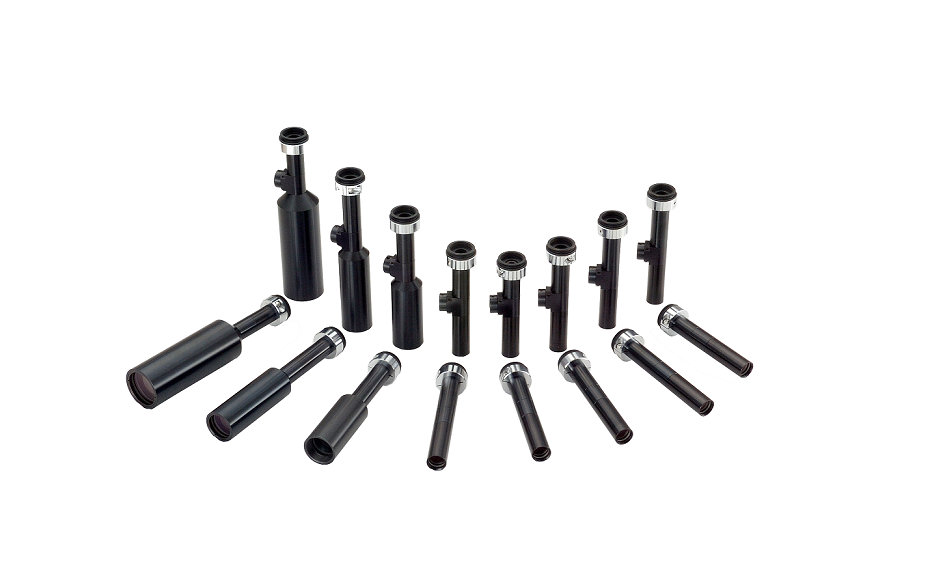

Compact telecentric lenses with 120mm working distances for φ 17 camera mount.

More information available upon request.

FVL 120

FVL 120

These lens use a C - Mount adapter that allows for total adjustment of camera orientation. There are different varieties of illumination port styles and magnifications.

Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
FVL-0-5x-120-CA
Straight Type
0.5x
0.027
9.3
17.6 x 13.2
0.10%
120
12.5
FVL-0-75x-120-CA
Straight Type
0.75x
0.028
13.3
11.7 x 8.8
0.10%
120
11.8
FVL-1x-120-CA
Straight Type
1x
0.03
16.7
8.8 x 6.6
0.10%
120
11.0
FVL-2x-120-CA
Straight Type
2x
0.036
32.5
4.4 x 3.3
0.10%
120
9.3
FVL-3x-120-CA
Straight Type
3x
0.04
36.3
2.9 x 2.2
0.10%
120
8.3
FVL-4x-120-CA
Straight Type
4x
0.043
43.9
2.2 x 1.7
0.10%
120
7.8
FVL-5x-120-CA
Straight Type
5x
0.045
52.4
1.8 x 1.3
0.10%
120
7.4
FVL-6x-120-CA
Straight Type
6x
0.048
62.2
1.5 x 1.1
0.10%
120
7.0
FVL-0-5x-120D-CA
Coaxial Illumination Port Version
0.19x
0.017
5.5
32
0.01%
100
2.9
FVL-0-75x-120D-CA
Coaxial Illumination Port Version
0.75x
0.028
13.3
11.7 x 8.8
0.10%
120
11.8
FVL-1x-120D-CA
Coaxial Illumination Port Version
1x
0.03
16.7
8.8 x 6.6
0.10%
120
11.0
FVL-2x-120D-CA
Coaxial Illumination Port Version
2x
0.036
32.5
4.4 x 3.3
0.10%
120
9.3
FVL-3x-120D-CA
Coaxial Illumination Port Version
3x
0.04
36.3
2.9 x 2.2
0.10%
120
8.3
FVL-4x-120D-CA
Coaxial Illumination Port Version
4x
0.043
43.9
2.2 x 1.7
0.10%
120
7.8
FVL-5x-120D-CA
Coaxial Illumination Port Version
5x
0.045
52.4
1.8 x 1.3
0.10%
120
7.4
FVL-6x-120D-CA
Coaxial Illumination Port Version
6x
0.048
62.2
1.5 x 1.1
0.10%
120
7.0
