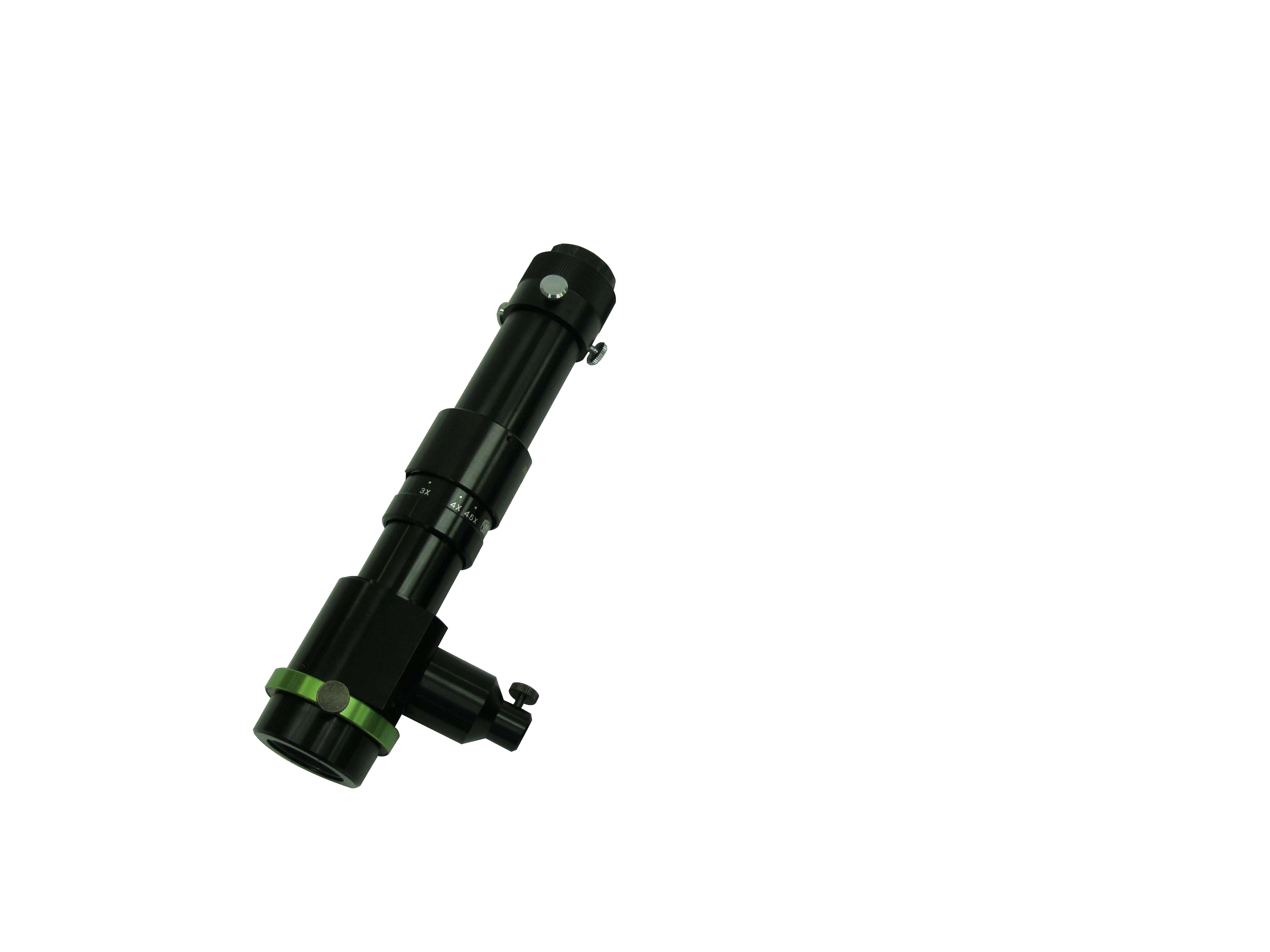

MSZ - 0745

Compact telecentric lenses with 65mm working distances for φ17 camera mount.

More information available upon request

MSZ - 0745

MSZ - 0745

High resolution telecentric bonder lens, with low distortion that is suitable for image processing systems.

The lens use a new C - Mount adapter has a variety of illumination port styles and magnifications.

Model Magnification Working Distance N.A. Eff. F-Number RP (μm) Max. FOV (mm)
MS-12Z-L1215
1.25x - 15x
46.2
0.03 - 0.2
20.8 - 37.5
11.2 - 1.7
5.1 x 3.8 - 0.4 x 0.3
MS-12Z-M2530
2.5x - 30x
35.3
0.06 - 0.36
20.8 - 41.7
5.59 - 0.93
2.6 x 1.9 - 0.2 x 0.2
MS-12Z-H450
4.16x - 50x
14
0.1 - 0.45
20.8 - 55.6
3.4 - 0.75
1.5 x 1.2 - 0.1 x 0.1
Model Type Magnification Working Distance N.A. Eff. F-Number RP (μm) Max. FOV (mm)
MSZ-0745D-DET-INF
Internal Focus
0.7x - 4.5x
92.3
0.029 - 0.069
12.8 - 32
11.6 - 4.9
9.1 x 6.9 - 1.4 x 1.1
MSZ-0745D-DET
Standard Zoom
0.7x - 4.5x
92.3
0.029 - 0.069
12.8 - 32
11.6 - 4.9
9.1 x 6.9 - 1.4 x 1.1
MSZ-03722LWD-DET
Standard Zoom
0.37x - 2.23x
195
0.012 - 0.034
4.6 - 25.9
23 - 9.3
17.2 x 13.0 - 2.9 x 2.2
MS-05536Z-D
Standard Zoom
0.55x - 3.6x
263.5
0.012 - 0.034
22.4 - 53.3
27.3 - 9.9
16 x 12 - 2.4 x 1.8
