FXL

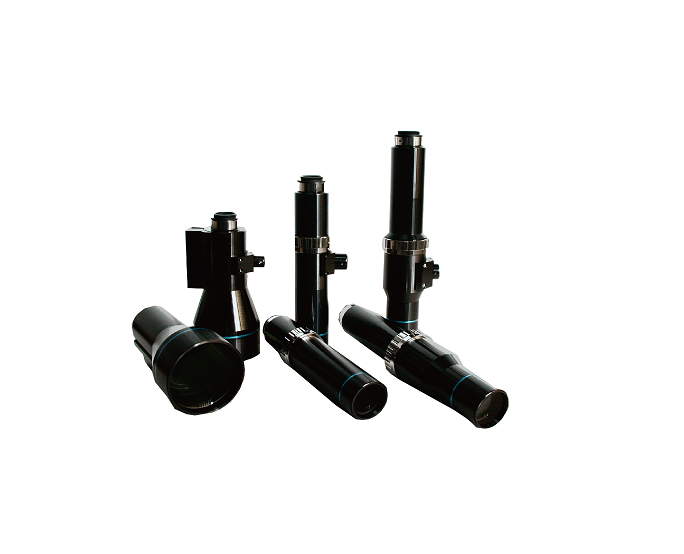

High-resolution telecentric lenses for 5 MP cameras. The lens have a working distance of 65mm and +100mm.

More information available upon request.

FXL

FXL

These telecentric lens are compatible with 2 and 5 megapixel cameras. They are designed with a high - resolution alignment and measurement.

Model Type Magnification N.A. Eff # Max. FOV (mm) Max. Dist. Working Distance RP (μm)
FXL-0-19x-120-C
Straight Type
0.19x
0.017
6
46.4 x 34.7
0.02%
120
21.0
FXL-1x-120-C
Straight Type
1x
0.072
7
8.8 x 6.6
0.05%
120
5.2
FXL-2x-100-C
Straight Type
2x
0.13
8
4.4 x 3.3
0.05%
100
2.9
FXL-0-19x-120D-CEFS
Coaxial Illumination Port Version
0.19x
0.017
6
46.4 x 34.7
0.02%
110
21.0
FXL-1x-120D-C
Coaxial Illumination Port Version
1x
0.072
7
8.8 x 6.6
0.05%
120
5.2
FXL-2x-100D-C
Coaxial Illumination Port Version
2x
0.13
8
4.4 x 3.3
0.05%
100
2.9
