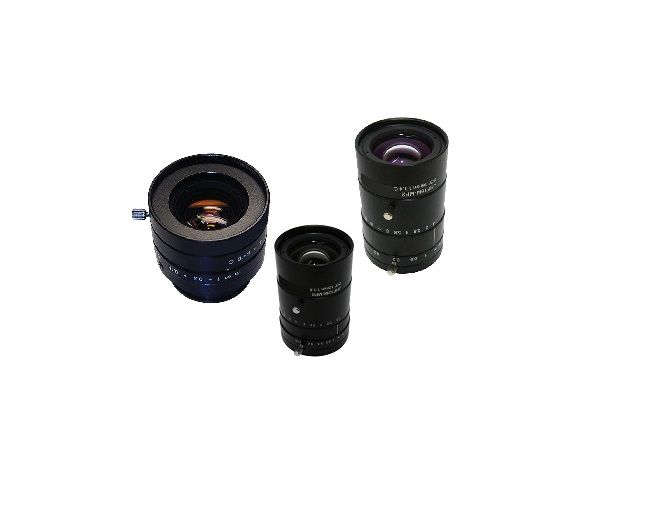

Low - Distortion Lens

High resolution fixed C-mount, focal length lens with low image distortion.

More information available upon request.

Low - Distortion Lens

Low - Distortion Lens

These machine vision lens are available for F1.4-16 and have lower image distortions. Also has manual Iris and manual focus features.

Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-8MK
F1.4-16
0.1
1”
79.7×63.0°
55
STV-12.5MK
F1.4-16
0.3
1”
55.6×42.5°
35.5
STV-16MK
F1.4-16
0.3
1”
44.3×33.6°
35.5
STV-25MK
F1.4-16
0.3
1”
29.3×22.0°
35.5
