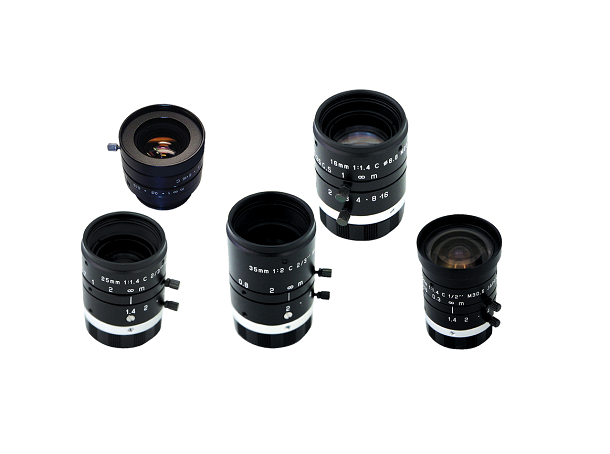

Megapixel Lens

High resolution fixed focal length lens with C-mount, manual iris and manual focus for megapixel Sensors.

More information available upon request.

Megapixel Lens

Megapixel Lens

Some common applications for these lens, that has a higher resolving power for megapixel lens. They are license plate recognition or product inspection when a detailed image is of greatest priority.

Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-12.5-MP-1inch
F1.4-22
0.3
1”
55.7×42.7°
35.5
STV-8-MP-1inch
F1.4-22
0.1
1”
79.7×62.9°
55
STV-6-MP-1inch
F1.8-22
0.1
1”
84.9×68.9°
No filter
STV-16M-3MP2
F1.4-22
0.2
30.8×23.3°
35.5
STV-12M-3MP
F1.8-C
0.2
40.3×30.8°
35.5
STV-6VH
F1.4-16
0.2
1/2”
57.4×44.3°
30.5
STV-16-EHF
F1.4-16
0.3
1/1.8”
24×18°
25.5
STV-25M
F1.4-22
0.25
2/3”
20.1×15.1°
25.5
STV-35M
F2.0-22
0.25
2/3”
14.33×10.45°
25.5
Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-35-MP-1.1inch
F1.4-22
0.3
1.1"
23.0×17.3°
35.5
STV-25-MP-1.1inch
F1.4-22
0.3
1.1"
31.9×24.1°
35.5
Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-35-MP-1inch
F1.4-22
0.3
1”
20.9×16.0°
35.5
STV-25-MP-1inch
F1.4-22
0.3
1”
29.0×21.9°
35.5
Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-16-MP-1.1inch
F1.4-22
0.3
1.1"
48.7×37.2°
35.5
Model Iris Range MOD (m) Max. Sensor Max. AOV Filter Size (mm)
STV-35M-IR
F1.4-22
0.25
2/3”
14.3×10.8°
49
STV-25M-IR
F1.4-22
0.2
2/3”
20.0×15.0°
49
STV-16M-IR
F1.4-22
0.2
2/3”
30.8×23.3°
49
STV-12M-IR
F1.8-22
0.15
2/3”
40.3×30.8°
49
STV-8M-IR
F2.8-22
0.1
2/3”
57.9×45.0°
49
