BG080

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Pixel Resolution:
1034(H) x 779(V) 0.8M
Pixel Size (um):
4.65 x 4.65
Frame Rate (fps):
40
Sensor format:
1/3 CCD
Scan area (mm):
4.81(H) x 3.62(V)
Aspect Ratio:
4:3
Standard sensitivity:
1700lx (F5.6, 1/40s)
Min. sensitivity:
7lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to +25%
Gamma:
y=1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
PoE/DC12V
Power consumption:
PoE:3.2W Max / DC12V:2.8W Max
Video format:
GVSP_PIX_MONO8:MONO 8bit/GVSP_PIX_MONO10:MONO 10bit
Electronic Shutter Method:
N/A
Sensor Vendor:
Sony Corporation
Lens Mount:
C mount

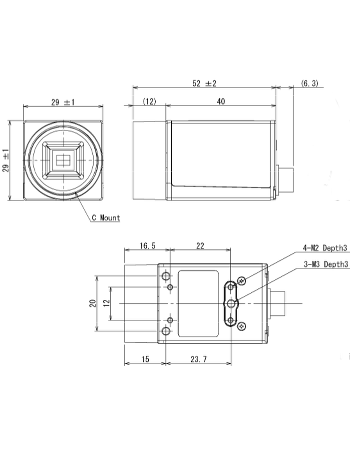

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 40(D)
Weight:
approx.53g
