BG031

GIGE

This BG series is an integrated-(one-body)-type camera that adopts all pixel data readout interline CCD or CMOS. For video output and camera control, the Gigabit Ethernet interface standard "IEEE 802.3ab" is adopted for high transfer rate, and it is easy to integrate into industrial equipment.

  • Selectable video output area: This mode achieves higher frame rate by reducing vertical output area
  • Reduces occupied data rate of Gigabit Ethernet by reducing horizontal output area
  • Color processing is built in namely RGB, YUV 4:2:2, YUV 4:1:1 and Bayer output modes
  • Employs global electronic shutter similar to a CCD image sensor, clear images of even fast-moving objects are obtained with less blur
  • Square grid arrangement of pixels facilitates computation in image processing
  • The Random Trigger Shutter function provides images in any timing by input of an external trigger signal. Trigger control from PC is available as well.





Pixel Resolution:
659(H) x 494(V) 0.3M
Pixel Size (um):
9.9 x 9.9
Frame Rate (fps):
125
Scan area (mm):
6.52(H) x4.89(V)
Aspect Ratio:
4:3
Standard sensitivity:
1700lx (F5.6, 1/125s)
Min. sensitivity:
7lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to +25%
Gamma:
y=1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
PoE/DC12V
Power consumption:
PoE:3.2W Max / DC12V:2.8W Max
Video format:
GVSP_PIX_MONO8:MONO 8bit/GVSP_PIX_MONO10:MONO 10bit
Weight:
approx.53g
Electronic Shutter Method:
N/A
Lens Mount:
C mount
Sensor type:
CCD
Sensor Vendor:
Sony Corporation
Sensor Name:
ICX414AL
Sensor format:
1/2 CCD

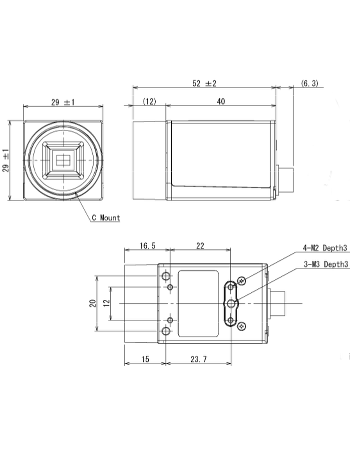

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 40(D)
