BG030C[F]

BG030C[F]
Pixel Resolution:
659 x 494
Pixel Size (um):
7.4 x 7.4
Frame Rate (fps):
125
Scan area (mm):
4.88 x 3.66
Aspect Ratio:
4:3
Standard sensitivity:
3500lx, F5.6, 1/125s
Min. sensitivity:
F1.4, Gain +18dB, Video level 50%, 14lx
Gamma:
γ=1.00 to 0.45 (factory setting : γ=1.00)
Gain:
MANUAL, AGC (factory setting: MANUAL)
Power requirement:
PoE (Power over Ethernet IEEE802.3af compliant) or DC+12V ±10% (ripple 100 mV(p-p) or less)
Power consumption:
PoE:3.8W Max, DC12V:3.2W Max
Color filter:
RGB primary color mosaic-on-tip color filter
Weight:
Approximately 53g
Lens Mount:
C-mount
Sensor format:
1/3 Type
Interface:
Gigabit Ethernet IEEE802.3ab (1000BASE-T) conformity

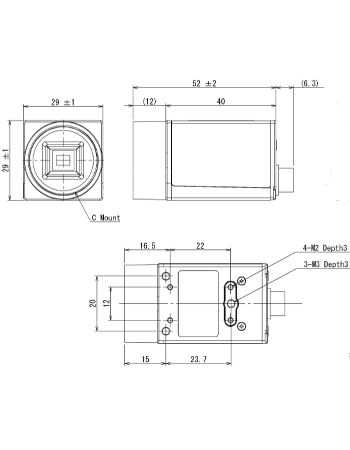

Dimentions(mm):
29(W) x 29(H) x 40(D) (Not including protrusion)
$0.00
SKU: BG030C[F]
List price: $0.00
Price: $0.00
New:
yes
