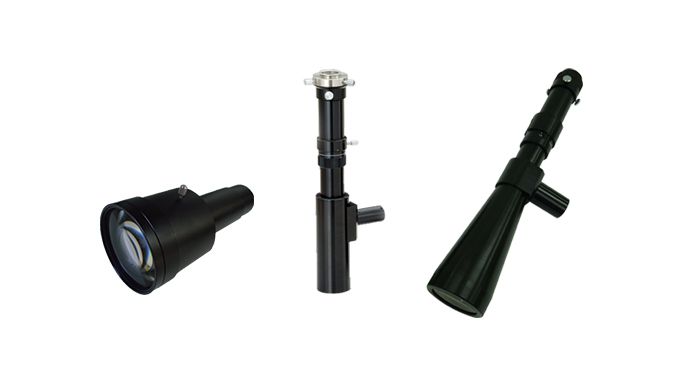

Low Magnification Zoom Tube

1 inch camera compatible 0.275x - 0.55

2/3 inch camera compatible 0.55X-3.6X Zoom tube

1/2 inch camera compatible 0.37X-2.23X Zoom tube

Low Magnification Zoom Tube

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

Low Magnification Zoom Tube

Compact zoom tube with magnification 0.55X-3.6X and 0.37X-2.23X.

The option of discrete zoom values, (in the zoom range) achieved by click detent, provided for MSZ-03722LWD-DET lens.

FXZ-2855 is telecentric zoom lens for 1 inch camera.

Low distortion, and possible to capture high resolution image in full area of FOV.

MS-05536Z-D is for 2/3 inch or smaller camera, and MSZ-03722LWD-DET is for 1/2 inch or smaller camera.

Ideal to capture uniform lighting image in full area of FOV.

Model Magnification Working Distance N.A.
3.6x
263.5
0.034
0.55x
263.5
0.012
2.23x
195
0.043
0.37x
195
0.04
0.275x
150
0.0245
0.55x
150
0.0414
