BU505MG

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

This camera series has a Bulk trigger and also sequential trigger modes. The modes allow for capture of multiple frames in rapid succession, each using different gain,exposure, ROI.

More features include:

  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

Pixel Resolution:
2464(H) x 2056(V)
Pixel Size (um):
3.45 x 3.45
Frame Rate (fps):
75
Scan area (mm):
8.50(H) x 7.09(V) (2/3 type)
Aspect Ratio:
6:5
Standard sensitivity:
2100lx F5.6, 1/75s
Min. sensitivity:
F1.4, Gain +24dB, Video level 50%
Black Level:
-25 to 25% (factory setting : 0% [0LSB@8bit])
Gamma:
γ=1.0 to 0.45 (factory setting : γ=1.0)
Gain:
0dB to +24dB (factory setting : 0dB)
Power requirement:
DC 5V
Power consumption:
3.2W (Maximum)
Weight:
approx. 32g
Image output format:
Mono 8 bits
Electronic Shutter Method:
Global shutter
Lens Mount:
C-mount
Sensor type:
CMOS
Sensor Vendor:
Sony Corporation
Sensor Name:
IMX250
Sensor format:
2/3 GS-CMOS

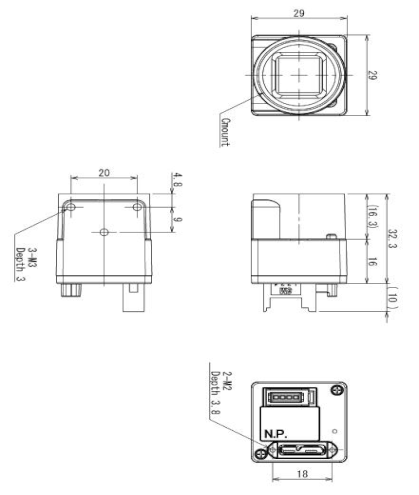

Housing Size (LxWxH) in mm:
29(W) x 29 (H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Image buffer:
Yes
Sequential shutter:
Yes
