BU302MG
USB 3.0
This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:
- Has bandwidth in excess of 440 MByte/sec.
- Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
- Features external and software trigger options
- Abundant sample code
- Unified SDK for USB 3.0
- Color models have built in color processing
- Equipped with all pixel data readout CCD
USB 3.0
This camera series has a Bulk trigger and also sequential trigger modes. The modes allow for capture of multiple frames in rapid succession, each using different gain,exposure, ROI.
More features include:
- Features external and software trigger options
- Abundant sample code
- Unified SDK for USB 3.0
- Color models have built in color processing
- Equipped with all pixel data readout CCD
USB 3.0
Pixel Resolution:
2064(H) x 1544(V) 3.14M
Pixel Size (um):
3.45 x 3.45
Frame Rate (fps):
120
Sensor format:
1/1.8 GS-CMOS
Scan area (mm):
7.12 x 5.33 (1/1.8 type)
Aspect Ratio:
4:3
Standard sensitivity:
3250lx F5.6, 1/120s
Min. sensitivity:
TBD (F1.4, Gain +24, Video level 50%)
Gain:
0 to +24dB
Power requirement:
DC 5V
Power consumption:
3.2W(maximum)
Image output format:
Mono 8, 10, 12 bits
Electronic Shutter Method:
global shutter
Sensor Vendor:
Sony Corporation
Lens Mount:
C mount

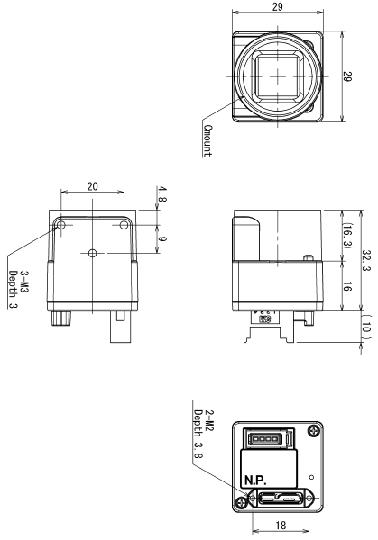

Housing Size (LxWxH) in mm:
29(W) x 29 (H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Image buffer:
Yes
Sequential shutter:
Yes
Weight:
32g
