BU238M

USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

This camera series has a Bulk trigger and also sequential trigger modes. The modes allow for capture of multiple frames in rapid succession, each using different gain,exposure, ROI.

More features include:

  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

Pixel Resolution:
1920(H) x 1200(V) 2.3M
Pixel Size (um):
5.86 x 5.86
Frame Rate (fps):
165
Scan area (mm):
11.25 x 7.03
Aspect Ratio:
16:10
Standard sensitivity:
3300lx (F8, 1/200s)
Min. sensitivity:
7lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-25% to +25%
Gamma:
1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
DC5V
Power consumption:
2.9W
Weight:
32g
Image output format:
Mono 8 bits
Electronic Shutter Method:
global shutter
Lens Mount:
C mount
Sensor type:
CMOS
Sensor Vendor:
Sony Corporation
Sensor Name:
IMX174
Sensor format:
1/1.2 GS-SMOS

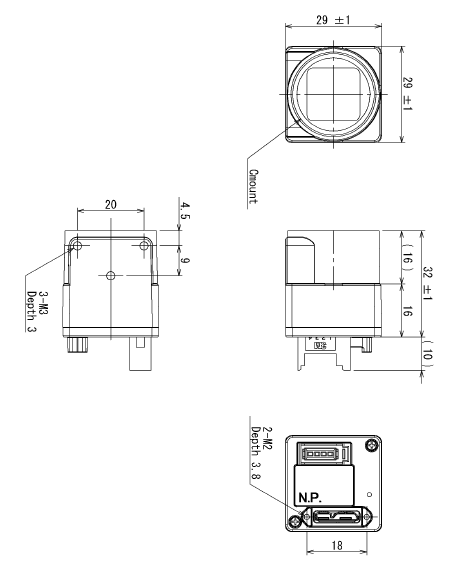

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Image buffer:
Yes
Sequential shutter:
Yes
