Superscope

Under Seiwa Optical and Correct Tokyol, superscopes were designed and manufactured various models for semiconductors, LCD assembly and more.

More information available upon request.

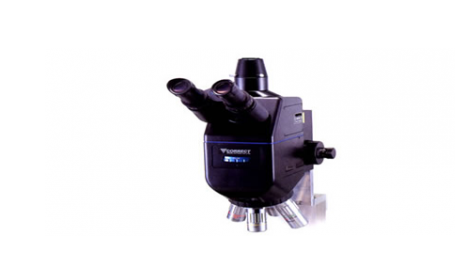

Superscope

Superscope

Standard Configuration with C-mount Camera port that is designed for probe station for semiconductors and for LCD assembly
Customizable design is made to order. Please specify desired operation wavelength at time of order.

Model Load Capacity Stroke
PS-888-TRI
45 kgs
50mm
Model Optical Path Load Capacity Stroke Weight
PS-888L-TH
0:100/100:0 Switch path
45kgs
50mm
8.1 kgs
PS-888-TH
T:R=70:30 Simultaneous Observation
45kgs
50mm
8.1 kgs
Model Optical Path Load Capacity Stroke Weight
PS-888L
0:100/100:0 Switch path
45kgs (99.1lbs)
±25mm
7.5kgs(16.50Lbs) w/manual focus block
Model Optical Path Load Capacity Stroke Weight
PS-888
T:R=70:30 Simultaneous Observation
45kgs (99.1lbs)
±25mm
6.8Kgs(14.99Lbs) w/manual focus block
