Pixel Resolution:
4096 (H) x 3000(V) 12.3M
Pixel Size (um):
3.45 x 3.45
Frame Rate (fps):
62
Sensor format:
1.1 type GS-CMOS
Scan area (mm):
14.13 x 10.35
Standard sensitivity:
TBD, F5.6, 1/32 s
Min. sensitivity:
TBD, F1.4(Gain +24 dB, Video level 50%)
Gain:
MANUAL: 0 to +24dB (factory setting: 0dB)
Power consumption:
TBD
Interface:
USB 3.0 (Only SuperSpeed is supported)

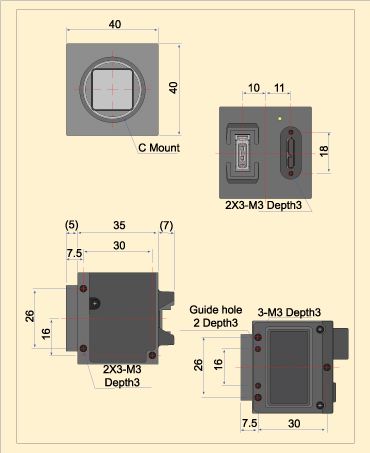

Dimentions(mm):
40(W)x40(H)x35(D) mm (Not including protrusion)
Weight:
TBD



MODELDDU1207MG
B/W or COLORB/W
Pixel12.3M
InterfaceUSB 3.0 (Only SuperSpeed is supported)
Imager1.1 type GS-CMOS (IMX253LLR)
Resolution4,096 x 3,000
Frame RateMono 8 : 62 fps
Pixel Size3.45µm (H) x 3.45µm (V)
Electronic ShutterMANUAL: 30 µs to 16 s,
Random Trigger Shutter
Color Filter---
Standard SensitivityTBD, F5.6, 1/32 s
Minimum SensitivityTBD, F1.4(Gain +24 dB,
Video level 50%)
Gammaγ=1.0 (OFF) to 0.45
GainMANUAL: 0 to +24dB (factory setting: 0dB)
White Balance---
Sync SystemInternal synchronization
Image Output FormatMono 8 / 10 / 12 bit
Power SupplyDC+5 V ±5%
(from USB connector)
Power ConsumptionTBD
Lens MountC-Mount
Dimensions40(W) x 40(H) x 35(D) mm
(Not including protrusion)
MassTBD
Operation AssuranceTemperature:-5°C to 45°C,
Humidity:10% to 90% (no condensation)
ConformityCE, FCC, RoHS, WEEE, USB3 Vision,
GenICam, IIDC2
