BU130C/CF

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

Pixel Resolution:
1296(H) x 966(V) 1.3M
Pixel Size (um):
3.75 x 3.75
Frame Rate (fps):
30
Scan area (mm):
4.86(H) x 3.62(V)
Aspect Ratio:
4:3
Standard sensitivity:
1250lx (F5.6, 1/30s)
Min. sensitivity:
5lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to +25%
Gamma:
y=1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
DC5V
Power consumption:
2.6 W
Color filter:
RGB primary color mosaic-on-tip color filter
Weight:
27g
Image output format:
YUV4:2:2 16bit / YUV4:1:1 12bit / RGB 24bit / Bayer 10bit / Bayer 8bit / Mono 8bit
Electronic Shutter Method:
global shutter
Lens Mount:
C mount
Sensor type:
CCD
Sensor Vendor:
Sony Corporation
Sensor Name:
ICX204AL
Sensor format:
1/3 CCD

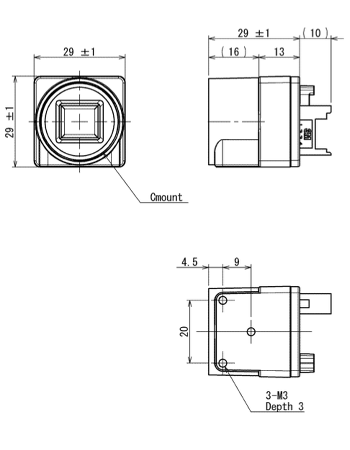

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 13(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes

 Optional IR blocking filter version available. Indicate when ordering.
