DU657MC

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

Pixel Resolution:
2560(H) x 2560(V) 6.5M
Pixel Size (um):
5.0 x 5.0
Frame Rate (fps):
55
Scan area (mm):
12.8 x 12.8
Aspect Ratio:
1:1
Standard sensitivity:
2200lx (F5.6, 1/60s)
Min. sensitivity:
40lx (F2.8, Gain x8, Video level 50%)
Black Level:
-25% to +25%
Gamma:
1.0 to 0.45
Gain:
x1 to x8
Power requirement:
DC5V
Power consumption:
3.6W
Color filter:
RGB primary color mosaic-on-tip color filter
Weight:
approx.85g
Image output format:
Bayer 8 bits
Electronic Shutter Method:
global shutter
Lens Mount:
C mount
Sensor type:
CMOS
Sensor Vendor:
Sony Corporation
Sensor Name:
TELI Original
Sensor format:
1.1 GS-CMOS

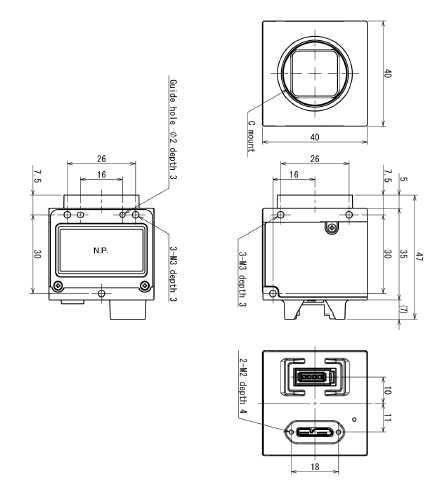

Housing Size (LxWxH) in mm:
40(W) x 40(H) x 35(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Image buffer:
Yes
Sequential shutter:
Yes
