BU302MCG/MCF

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

Pixel Resolution:
2064(H) x 1544(V) 3.1M
Pixel Size (um):
3.45 x 3.45
Frame Rate (fps):
120
Scan area (mm):
7.12 x 5.33 (1/1.8 type)
Aspect Ratio:
4:3
Standard sensitivity:
2400lx F4, 1/120s with IR cut filter 2650lx F4, 1/120s
Min. sensitivity:
TBD (F1.4, Gain +24, Video level 50%)
Gain:
0 to +24dB
Power requirement:
DC 5V
Power consumption:
4.0W(max)
Weight:
32g
Image output format:
Bayer 8, 10, 12 bits
Electronic Shutter Method:
global shutter
Lens Mount:
C mount
Sensor type:
CMOS
Sensor Vendor:
Sony Corporation
Sensor Name:
IMX252
Sensor format:
1/1.8 GS-CMOS

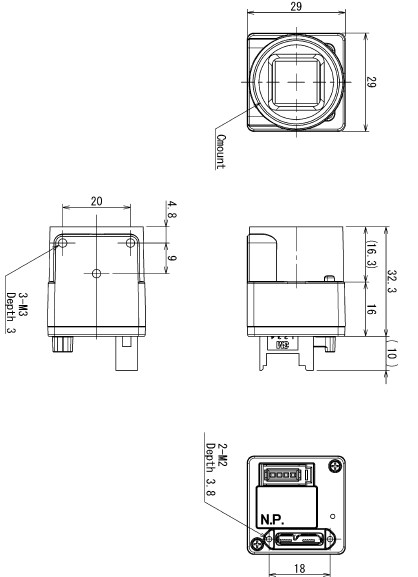

Housing Size (LxWxH) in mm:
29(W) x 29 (H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
