BU1203MC/MCF

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

Pixel Resolution:
4000(H) x 3000(V) 12M
Pixel Size (um):
1.85 x 1.85
Frame Rate (fps):
30
Scan area (mm):
7.53(H) x 5.64(V)
Aspect Ratio:
4:3
Standard sensitivity:
4600lx F8, 1/30s
Min. sensitivity:
F1.4, Gain +18dB, Video level 50% 14lx
Black Level:
-25% to +25%
Gamma:
1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
DC5V
Power consumption:
2.7W (Maximum)
Color filter:
RGB primary color mosaic-on-tip color filter
Weight:
approx.32g
Image output format:
Bayer 8 bits/Mono 8 bits
Electronic Shutter Method:
Normal shutter: Rolling reset, Random trigger shutter: Global reset
Lens Mount:
C mount
Sensor type:
CMOS
Sensor Vendor:
Sony Corporation
Sensor Name:
IMX226
Sensor format:
1/1.7 RS-CMOS

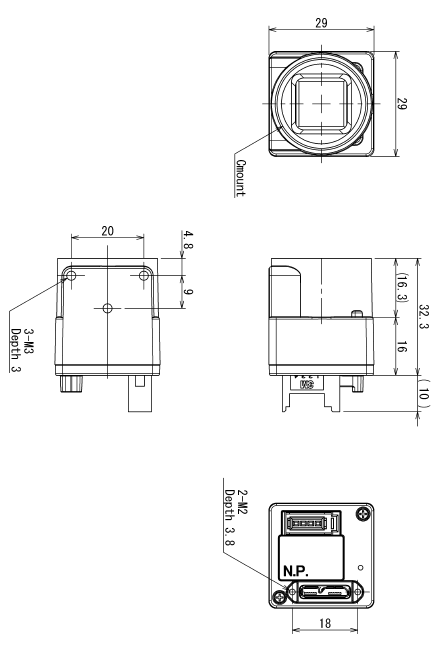

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Image buffer:
Yes
Interface:
USB3.0 (Only SuperSpeed is supported)
